950 ZIDA-Sat

The microblasting equipment PEENMATIC 950 ZIDA-SAT is designed for an automatic and consistent surface treatment of cylindrical workpieces.

Equipment

  • The microblasting equipment PEENMATIC 950 ZIDA-SAT is designed for an automatic and consistent surface treatment of cylindrical workpieces.

  • Cylindrical workpieces up to a maximum Ø of 80 mm x height 150 mm can thus be microblasted automatically and evenly.

  • Three microblasting pistol units are installed on a vertical axis and they move with the adjusted speed over the specified length of stroke during the microblasting process.


Standard equipment:

  • Siemens LOGO! text display

  • Microblasting agent pre-accelerating system with moving injector

  • Automatic, selective microblasting agent recycling system

  • Integrated high surface microfilter system

  • Satellite table with 8 satellites

  • 3 microblasting pistol units

  • Safety light barrier

Accessories(on request):

  • Linear unit with 150 mm lifting

  • Pneumatic air lock

  • Continuous drying system for microblasting agents

Technical data

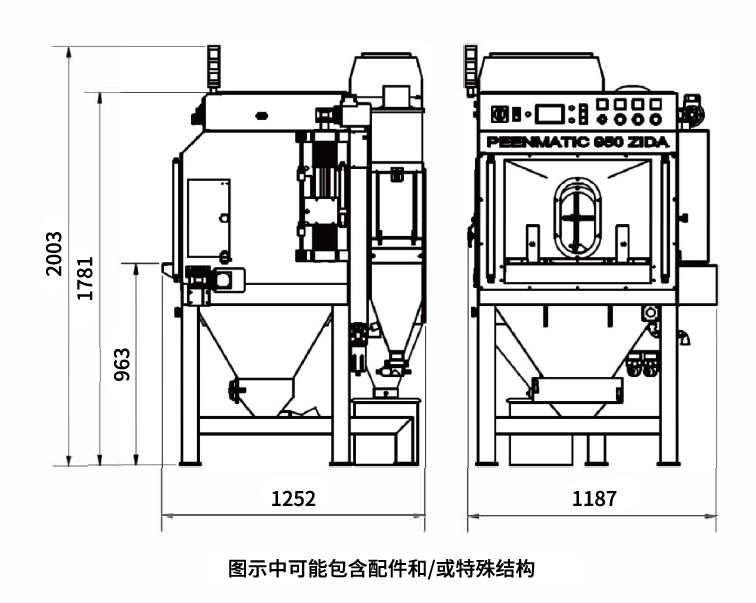

Dimensions:

Width 1‘190 x depth 1‘252 x height 2‘005 mm

Operating voltage:

3x400V+PE+N I 50 I 60Hz

Power consumption:

1KW

Control safety:

Max. 16 A

Compressed air connection: On

≥1G

On the side of the equipment

≥ 1" G

Max. inlet pressure

0-10bar

Air consumption:

Approx. 2’000 - 5’000 litres / minute
